Suction Strainer Supplier in India
Protecting hydraulic pumps and control systems from solid contaminants, Suction Strainer are gaining immense popularity in the market. The construction of the strainers is done in such a manner that these can be easily installed into suction lines of pumps. We always advise our clients to install the suction strainer below the minimum oil level of the reservoir. Unlike the ordinary strainers, our range of suction strainer elements are supplied with a bypass valve so that the high pressure drops caused by contaminated elements or high viscosity fluids during cold starting can be easily reduced.

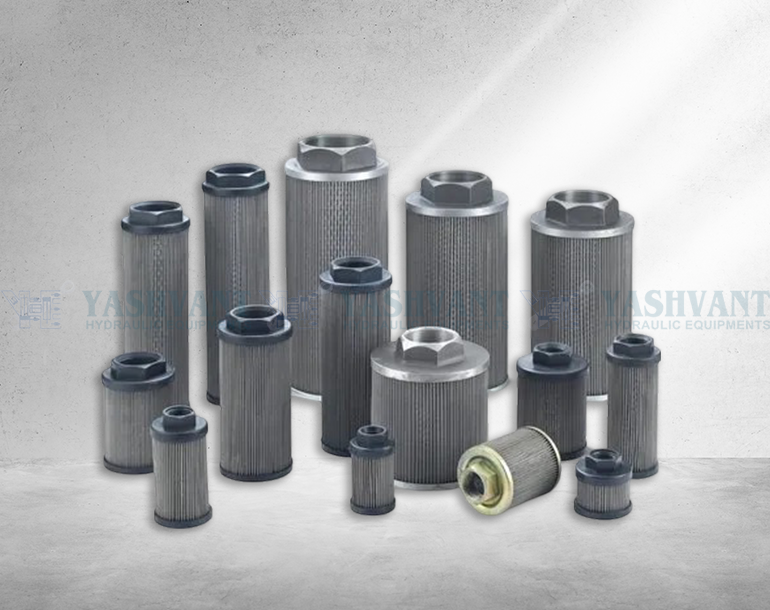

Industrial Strainers
We offer to our client a wide range of Industrial Strainers. which is made available in different sizes. It is similar to aluminium and plastic nut strainer. It helps in protecting hydraulic pumps and control systems from solid contaminants.

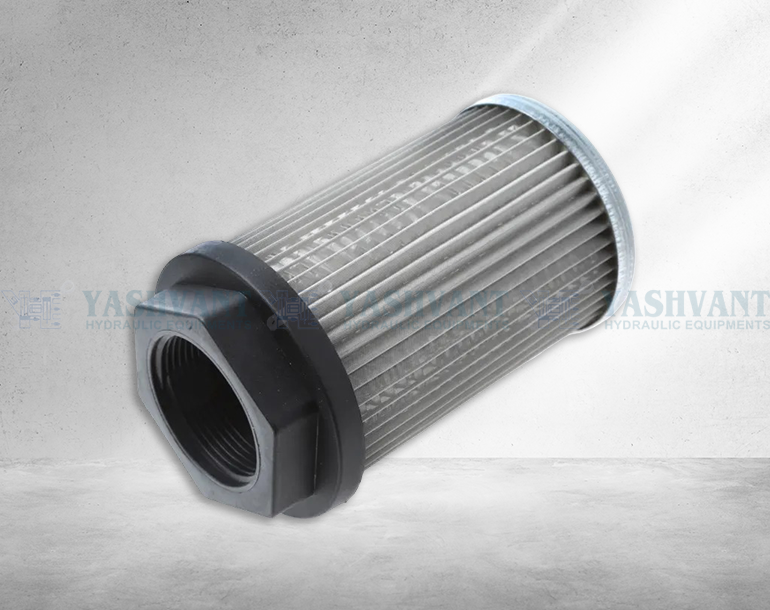

Suction Strainer Steel Nut / Sump Strainer
We are amongst the leading manufacturers of Suction Strainer Steel Nut which is made available in different sizes. It is similar to aluminium and plastic nut strainer. It helps in protecting hydraulic pumps and control systems from solid contaminants. It is highly popular among our clients and manufactured as per industrial standards. It is easy to install and requires low maintenance.
Specifications :
- Reusable Ss 100 Mesh / 149 Micron Std.
- Sturdy All Metal Steel Construction.
- Continuous Special Compound.
- Max. Working Temp.: 80 ° C.
- Suitable For: Hydraulic / Mineral Oil.
- Flexible Magnetic Wrap Available.
Steel cap:
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| SC2-l | 1 | 1/4" | 70 | 22 | 35 | 15 |
| sc2-3 | 3 | 1/4" | 62 | 22 | 57 | 25 |
| SC2-3 | 3 | 3/8" | 62 | 25 | 57 | 25 |
| SC2-5 | 5 | 3/4" | 68 | 36 | 66 | 40 |
| SC2-10 | 10 | 1" | 119 | 42 | 66 | 80 |
| sc2-15 | 15 | 1 1/4" | 142 | 50 | 85 | 125 |
| SC2-20 | 20 | 1 1/2" | 170 | 55 | 85 | 160 |
| sce-30 | 30 | 1 1/2" | 196 | 55 | 85 | 225 |
| SC 2-40 | 40 | 2" | 221 | 70 | 100 | 300 |
| SC2-50 | 50 | 2" | 246 | 70 | 100 | 340 |
| SC2-75 | 75 | 2 1/2" | 200 | 0100 | 140 | 400 |
| SC2-lOO | 1 | 3" | 246 | 0110 | 140 | 500 |
| SC2-150 | 1 | 3" | 340 | 0110 | 140 | 750 |

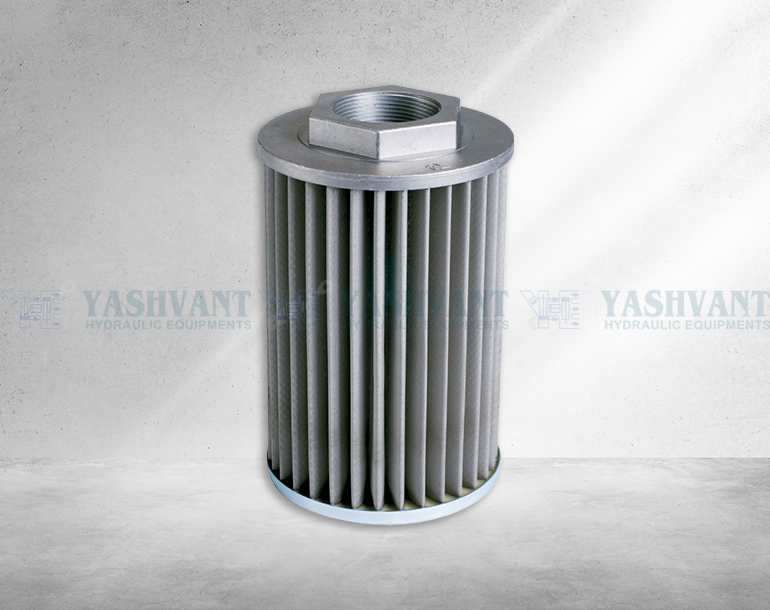

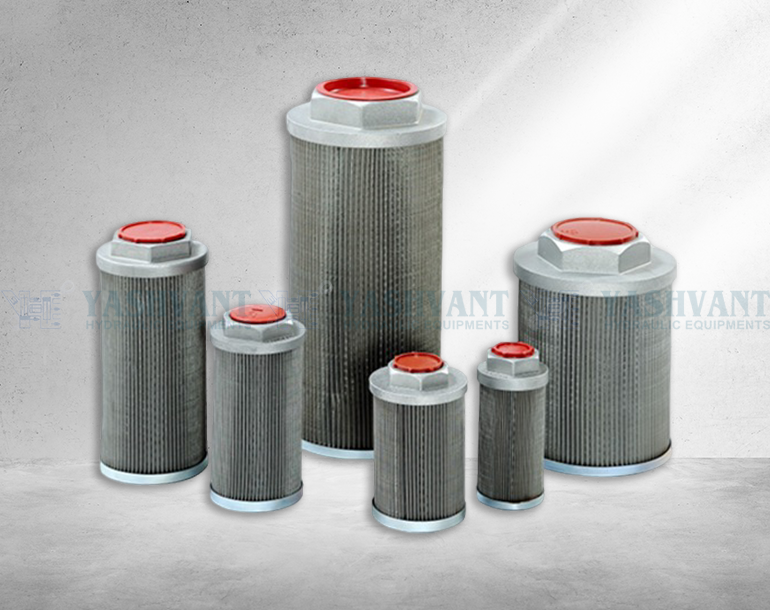

Aluminium die cast nut :
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| STR 4 - 002 | 8 | 1/4" | 90 | 46 | 24 | 187 | 0.10 |
| STR 4 - 003 | 12 | 3/8" | 90 | 46 | 24 | 187 | 0.10 |
| STR 4 -005 | 20 | 1/2" | 105 | 46 | 30 | 226 | 0.10 |
| STR 4 - 007 | 28 | 3/4" | 109 | 64 | 35 | 406 | 0.20 |
| STR 4 - 010 | 40 | 1" | 139 | 64 | 46 | 542 | 0.20 |
| STR 4 - 015 | 60 | 1-1/4" | 139 | 86 | 51 | 929 | 0.30 |
| STR 4 - 020 | 80 | 1-1/2" | 168 | 86 | 60 | 1161 | 0.35 |
| STR 4 - 030 | 120 | 1-1/2" | 200 | 86 | 60 | 1363 | 0.40 |
| STR 4 - 040 | 160 | 2" | 235 | 100 | 70 | 1806 | 0.55 |
| STR 4 - 050 | 200 | 2" | 260 | 100 | 70 | 2032 | 0.60 |
| STR 4 - 075 | 300 | 2-1/2" | 211 | 150 | 90 | 2787 | 0.85 |
| STR 4 - 100 | 400 | 3" | 272 | 150 | 100 | 3677 | 1.00 |
| STR 4 - 150 | 600 | 3" | 345 | 150 | 100 | 4838 | 1.25 |
NOTE : All metal sturdy one piece plated stæl construction with reusable plated stalnless steel 100 mesh cloth and female B.SP. Thread star&rd supply can be easily renvved cleaned and reused. DIMENSION IN uu ARE FOR REFEFENCE ONLY
