Hydraulic Shearing Machine, Hydraulic Shearing Machine Manufacturer in Ahmedabad

Machine Code	Shearing Length	Nominal Rake Angle(MS)	Maximum Rake Angle(MS)	Nominal Rake Angle(SS)	Maximum Rake Angle(SS)	Rake Angle	Rake Angle Range	Stracke/Minute at Min. & Max. Rake Angle	Hold Downs	Holding Force (Kgs)	Power(HP)	Packing Dimension(LxWxH)(mm)	Approx Weight(Kgs)
DHSM - 220	2000	2	NA	1	NA	1*	0.5-2*	22	9	1300	3	2580 x 1400 x 1400	2000
DHSM - 225	2500	2	3.15	1	1.6	1*	0.5-2*	22-10	13	1800	3	2900 x 1600 x 1500	2500
DHSM - 230	3000	2	3.15	1	1.6	1*	0.5-2*	18-8	15	1800	3	3400 x 1600 x 1500	2800
DHSM - 315	1500	3.15	4	2	3	1* 15'	0.5-2*	24-10	8	2000	5	2250 x 1850 x 2050	2000
DHSM - 320	2000	3.15	4	2	3	1* 15'	0.5-2*	26-14	11	2000	5	2700 x 1550 x 1800	2700
DHSM - 325	2500	3.15	4	2	3	1* 15'	0.5-2*	28-13	13	2500	5	3200 x 1850 x 1950	3500
DHSM - 330	3000	3.15	4	2	3	1* 15'	0.5-2*	24-9	15	2500	5	3700 x 1850 x 1950	4000
DHSM - 415	1500	4	6	3	4	1* 37'	0.5-3*	24-10	8	4500	5	2250 x 1850 x 2050	3200
DHSM - 420	2000	4	6	3	4	1* 37'	0.5-3*	24-10	11	6200	7.5	2750 x 1850 x 2050	3500
DHSM - 425	2500	4	6	3	4	1* 37'	0.5-3*	22-8	13	8000	7.5	3300 x 2250 x 2400	5000
DHSM - 430	3000	4	6	3	4	1* 37'	0.5-3*	22-8	15	10000	10	3700 x 2250 x 2400	6000
DHSM - 440	4000	4	6	3	4	1* 45'	0.5-3*	18-6	20	12000	10	4500 x 2250 x 2400	8100
DHSM - 615	1500	6	8	4	6	1* 45'	0.5-3*	24-8	8	6500	10	2250 x 1900 x 2100	4000
DHSM - 620	2000	6	8	4	6	1* 45'	0.5-3*	22-7	11	65000	10	2750 x 1900 x 2100	4300
DHSM - 625	2500	6	8	4	6	1* 45'	0.5-3*	28-8	13	8500	15	3300 x 2250 x 2500	6000
DHSM - 630	3000	6	8	4	6	1* 45'	0.5-3*	24-6	15	10800	15	3800 x 2250 x 2500	6500
DHSM - 640	4000	6	8	4	6	2*	0.5-3*	24-6	20	13600	20	4800 x 2250 x 2500	8200
DHSM - 815	1500	8	10	6	8	2*	0.5-3*	22-10	8	10500	15	2250 x 2050 x 2200	5200
DHSM - 820	2000	8	10	6	8	2*	0.5-3*	18-8	11	12000	15	2750 x 2050 x 2200	6000
DHSM - 825	2500	8	10	6	8	2*	0.5-3*	24-8	13	16500	20	3300 x 2350 x 2600	7500
DHSM - 830	3000	8	10	6	8	2*	0.5-3*	20-6	15	18500	20	3800 x 2350 x 2600	9000
DHSM - 840	4000	8	10	6	8	2*	0.5-3*	20-8	20	23000	25	4800 x 2350 x 2600	12500
DHSM - 1015	1500	10	13	8	10	2*	0.5-3*	20-10	8	10500	15	2250 x 2050 x 2300	6000
DHSM - 1020	2000	10	13	8	10	2*	0.5-3*	18-0	11	13000	15	2750 x 2050 x 2300	7000
DHSM - 1025	2500	10	13	8	10	2*	0.5-3*	24-8	13	17500	20	3300 x 2500 x 2800	9000
DHSM - 1030	3000	10	13	8	10	2*	0.5-3*	20-6	15	20000	20	3800 x 2500 x 2800	11500
DHSM - 1040	4000	10	13	8	10	2*	0.5-3*	18-6	20	25000	30	4800 x 2500 x 2800	15000
DHSM - 1320	2000	13	16	10	13	2*	0.5-3*	13-5	11	16500	20	2750 x 2200 x 2500	7000
DHSM - 1325	2500	13	16	10	13	2*	0.5-3*	15-10	13	32000	25	3350 x 2600 x 2800	9000
DHSM - 1330	3000	13	16	10	13	2*	0.5-3*	12-6	15	37000	25	3800 x 2600 x2800	12000
DHSM - 1340	4000	13	16	10	13	2*	0.5-3*	10-4	20	22000	30	4850 x 2200 x 2800	15500
DHSM - 1620	2000	16	20	13	16	2*	0.5-3*	13-7	11	22000	25	2750 x 2200 x 2600	12000
DHSM - 1625	2500	16	20	13	16	2*	0.5-3*	15-8	13	40000	30	3500 x 2600 x 2900	15000
DHSM - 1630	3000	16	20	13	16	2*	0.5-3*	12-6	15	43500	30	4000 x 2600 x 2900	17000
DHSM - 1640	4000	16	20	13	16	2*	0.5-3*	10-4	20	30000	30	5100 x 2750 x 2900	20000
DHSM - 2020	2000	20	25	16	20	2*	0.5-3*	16-8	11	32000	40	2900 x 2500 x 2600	17000
DHSM - 2025	2500	20	25	16	20	2*	0.5-3*	15-8	13	48000	40	3500 x 2750 x 3000	18000
DHSM - 2030	3000	20	25	16	20	2*	0.5-3*	12-6	15	52000	40	4000 x 2750 x 3000	20000
DHSM - 2040	4000	20	25	16	20	2*	0.5-3*	10-4	20	30000	50	5100 x 2800 x 3000	24000

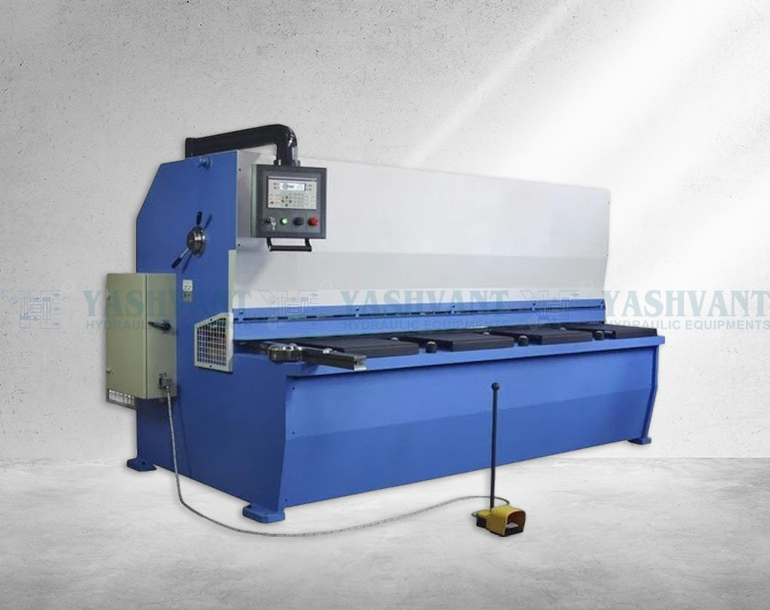

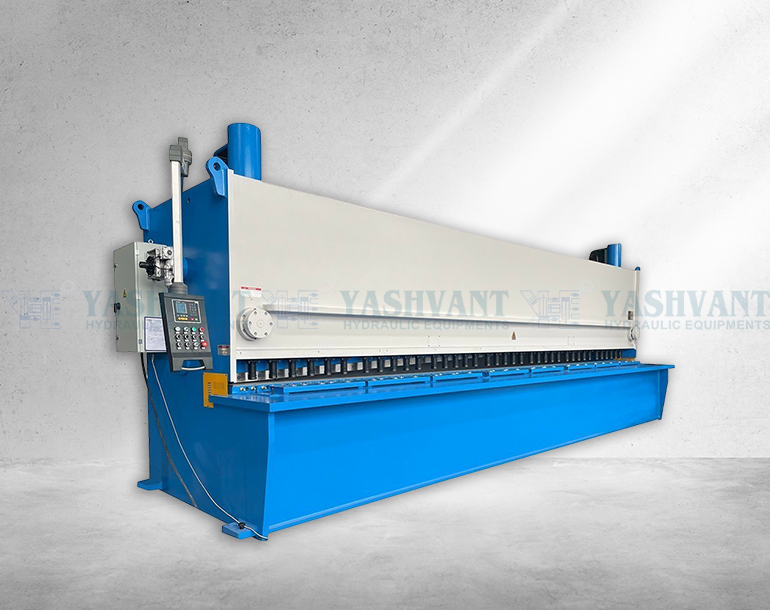

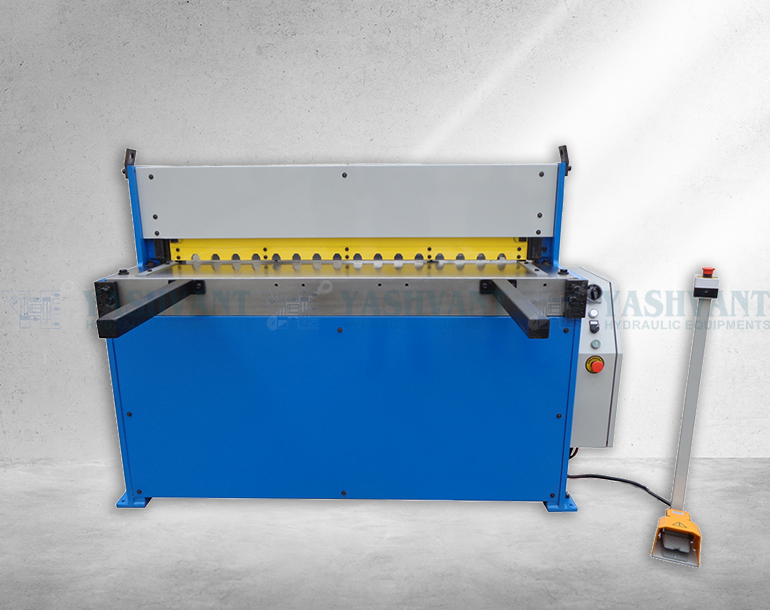

Hydraulic Searing Machine
