Hydraulic Press Brake Machine Manufacturer & Supplier in Ahmedabad, Gujarat

Machine Code	Tonnage(MT)	Table Working Length(mm)	Bending Capacity(For M.S)		Table Width(mm)	Clear Pass(mm)	Ram Storke(mm)	Open Height(mm)	Throat Depth(mm)	Speed A-P-R(mm/sec)	Power(HP)	Overall Dimension(LxWxH)(mm)	Approx Weight(Kg)
Machine Code	Tonnage(MT)	Table Working Length(mm)	Min.	Max.	Table Width(mm)	Clear Pass(mm)	Ram Storke(mm)	Open Height(mm)	Throat Depth(mm)	Speed A-P-R(mm/sec)	Power(HP)	Overall Dimension(LxWxH)(mm)	Approx Weight(Kg)
DEPB 215	20	1500	1.6x1500	2x1250	150	1050	100	250	100	35-9-35	2	1700 x 1050 x 1900	1500
DEPB 320	30	2000	2x2000	3x1250	150	1550	100	250	200	30-7-30	3	2200 x 1150 x 1900	2500
EDEPB 425	40	2500	2x2500	3x1250	150	2050	100	250	200	40-8-40	3	2700 x 1150 x 1900	3000
DEPB 515	50	1500	4x1500	5x1250	190	1050	100	250	200	35-7-35	5	1700 x 1050 x 1900	2500
DEPB 520	50	2000	3xd200	4x12500	190	1550	100	250	200	35-7-35	5	2200 x 1050 x 1900	3200
DEPB 525	50	2500	2.5x2500	3x2000	190	2050	100	330	200	35-7-35	5	2700 x 1050 x 1900	3500
DEPB 625	65	2500	3x2500	4x2000	190	2050	150	330	200	30-5-30	5	2700 x 1200 x 2000	3700
DEPB 630	65	3050	2.5x3000	3x2500	190	2550	150	330	200	30-5-30	5	3350 x 1200 x 2000	4300
DEPB 825	80	2500	4x2500	5x2000	190	2050	150	330	200	38-6-45	7.5	2700 x 1550 x 2300	4500
DEPB 830	80	3050	3x3000	4x2500	190	2550	150	330	200	38-6-45	7.5	3350 x 1550 x 2300	5000
DEPB 1025	100	2500	5x2500	6x2000	190	2050	150	330	200	38-6-45	7.5	2700 x 1550 x 2300	5400
DEPB 1030	100	3050	4x3000	5x2500	190	2550	150	330	200	38-6-45	7.5	3350 x 1550 x 2300	6200
DEPB 1240	100	4050	3x4000	4x3000	190	3250	150	330	200	38-6-45	7.5	4250 x 1650 x 2300	7000
DEPB 1225	125	2500	6x2500	8x2000	250	2150	150	350	300	38-5-40	10	2750 x 1650 x 2500	6500
DEPB 1230	125	3050	5x3000	6x2500	250	2650	150	350	300	38-5-40	10	3350 x 1650 x 2500	7000
DEPB 1240	125	4050	4x4000	5x3000	250	3250	150	350	300	38-5-40	10	4200 x 1650 x 2500	8300
DEPB 1625	160	2500	8x2500	10x2000	230	2150	150	350	300	35-6-40	15	2750 x 1800 x 2600	8200
DEPB 1630	160	3050	6x3000	8x2500	230	2650	150	350	300	35-6-40	15	3350 x 1800 x 2600	8800
DEPB 1640	160	4050	5x4000	6x3000	230	3250	150	350	300	35-6-40	15	4350 x 2050 x 2750	9800
DEPB 2025	200	2500	10x2500	12x2000	230	2150	200	400	300	35-7-35	20	2850 x 2050 x 2750	9500
DEPB 2030	200	3050	8x3000	10x2500	230	2650	200	400	300	35-7-35	20	3350 x 2050 x 2750	10500
DEPB 2040	200	4050	6x4000	8x3000	230	3250	200	400	300	35-7-35	20	4350 x 2050 x 2750	12500
DEPB 2530	200	3050	10x3000	12x2500	300	2650	200	400	300	35-6-40	25	3350 x 2100 x 2800	12000
DEPB 2540	250	4050	8x4000	10x3000	300	3250	200	400	300	35-6-40	25	4350 x 2100 x 2800	13500
DEPB 3030	300	3050	12x3000	15x2500	300	2650	200	400	300	30-6-35	30	3350 x 2150 x 2900	12000
DEPB 3040	300	4050	10x4000	12x3000	300	3250	200	400	300	30-6-35	30	4350 x 2150 x 2900	15000
DEPB 4030	400	3050	16x3000	20x2500	300	2650	250	500	350	30-5-35	40	3350 x 2200 x 3000	18000
DEPB 4040	400	4050	12x4000	16x3000	300	3250	250	500	350	30-5-35	40	4350 x 2200 x 3000	19500
DEPB 5030	500	3100	20x3000	25x2500	350	2650	250	500	350	35-6-40	50	3550 x 2350 x 3200	21500
DEPB 5040	500	4100	16x4000	20x3000	350	3250	250	500	350	30-5-35	50	4450 x 2500 x 3350	23500

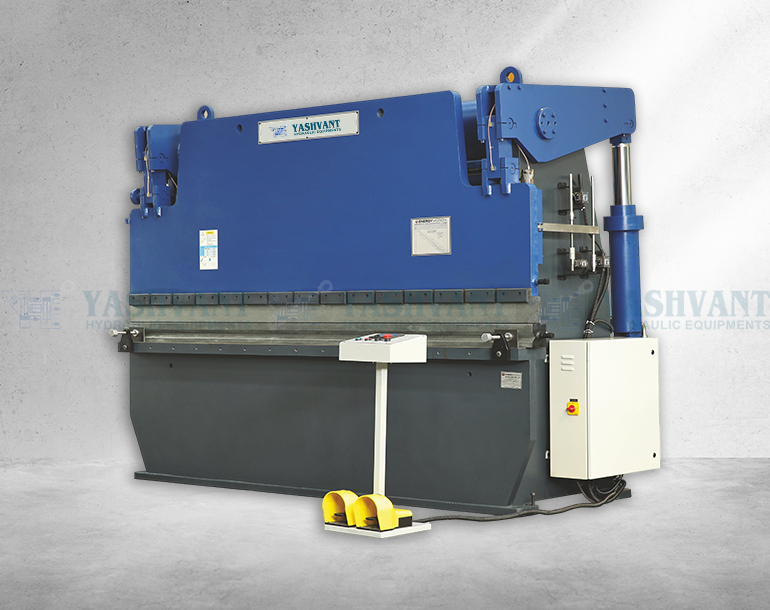

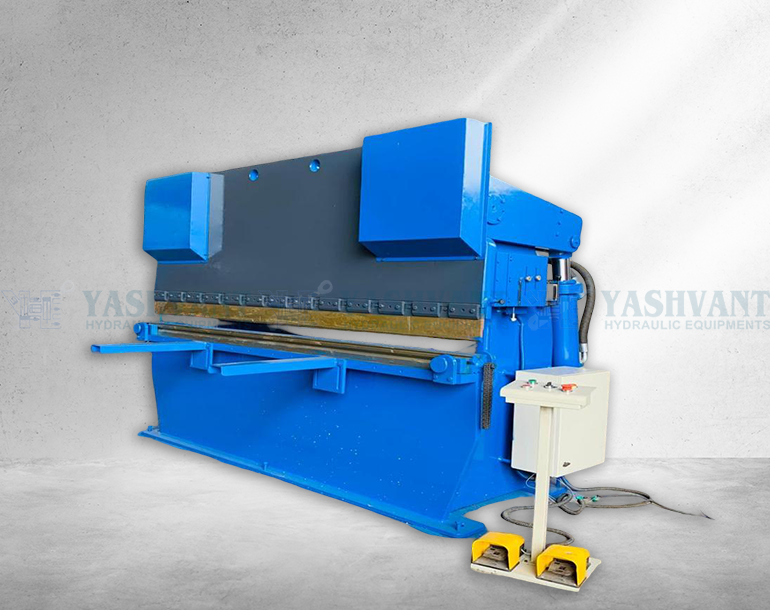

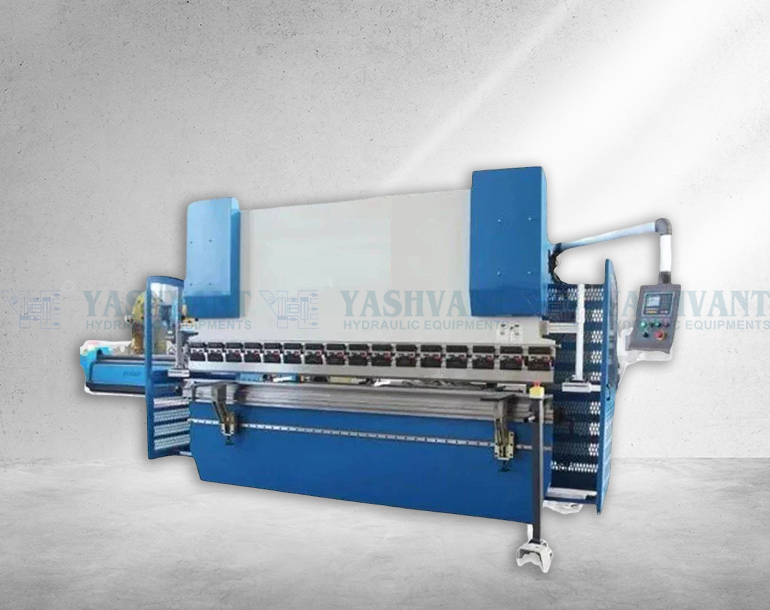

Hydraulic Press Break Machine
