Bell Housing & L Brackets

Bell Housing & L Brackets
Bell Housing & L Brackets

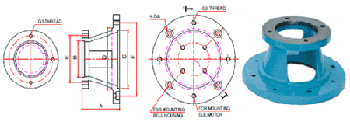

Bell Housing for gear and valve pump :

AME HP A B C D E F G1 G2 H
71 0.5 75 82.6 110 115 106.2 130 M10 M8 8.5
80L 0.75,1 80 82.6 130 140 106.2 165 M10 M10 8.5
90S/L 1.5,2 100 82.6 130 140 106.2 165 M10 M10 10.5
100L / 112M 3.5 120 82.6 180 180 106.2 215 M10 M12 10.5
100L / 112M 3.5 145 101.6 180 180 145.9 215 M12 M12 10.5
132S/M 7.5,10 170 82.6 230 230 106.2 265 M10 M12 10.5
132S/M 7.5,10 170 101.6 230 230 145.9 265 M12 M12 10.5
132S/M 7.5,10 170 127 230 230 180.8 265 M16 M12 10.5
160M/L-180M/L 12.5,15,20,25,30 200 101.6 250 250 145.9 300 M12 M16 10.5
160M/L-180M/L 12.5,15,20,25,30 200 127 250 250 180.8 300 M16 M16 10.5
200 L 40 210 101.6 /
127		 300 300 145.9 /
180.8		 350 M12 M16 10.5
Bell Housing & L Brackets
Bell Housing & L Brackets

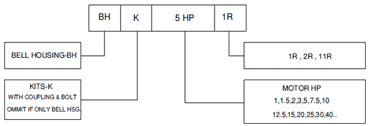

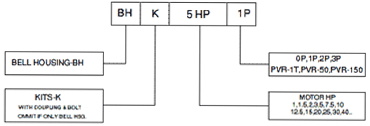

Bell Housing For Piston Pumps :

MOTOR HP. A B C D E F G1
1,1.5,2 HP 130 60 130 /
120		 130 80 165 M10
3,5 HP 145 /
122		 60 180 180 80 216 M12
7.5,10 HP 170 /
145		 60 230 230 80 265 M12
12.5,15,20,25,30 HP 200 60 250 250 80 300 M16
40 HP 210 60 300 300 80 350 M16
Bell Housing & L Brackets
Bell Housing & L Brackets

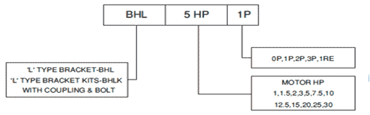

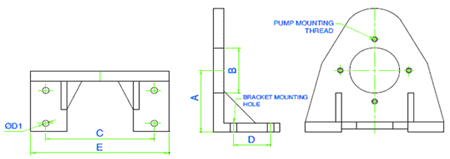

stabd bracket l type :

MOTOR PUMP A B C D E D1
0.5 1P 71 82.6 150 50 182 11
0.75,1 1P 80 82.6 150 50 182 11
1.5,2 1P,1R 90 82.6/60 150 50 182 11
3 1P,2P,3P,1R 100 82.6/101.6

127/60 		190 60 228 11
5 1P,2P,3P,1R 112 82.6/101.6

127/60		 190 60 228 11
7.5,10 1P,2P,1R 132 82.6/101.6

60		 230 60 272 13
7.5,10 3P 132 127 230 60 272 13
12.5,15,20 1P,2P,3P,1R 160 82.6/101.6

127/60		 270 80 322 13
25,30 1P,2P,3P,1R 180 82.6/101.6

127/60		 270 80 322 13
Bell Housing & L Brackets
Bell Housing & L Brackets

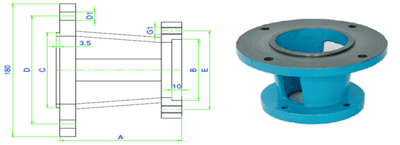

Extension Bracket for Pumps :

RACKET PUMP A B C D E G1 D1
EB 1RE 1P 120 /
87		 82.6 101.6 156 106.2 M10 10.5
EB 1RE 2P 120 /
96		 101.6 101.6 156 145.9 M12 10.5
EB 1RE 3P 130 127 101.6 156 180.8 M16 10.5
EB 11RE 2P 130 101.6 113.8 156 145.9 M12 18
EB 11RE 3P 130 127 113.8 156 180.8 M16 18
