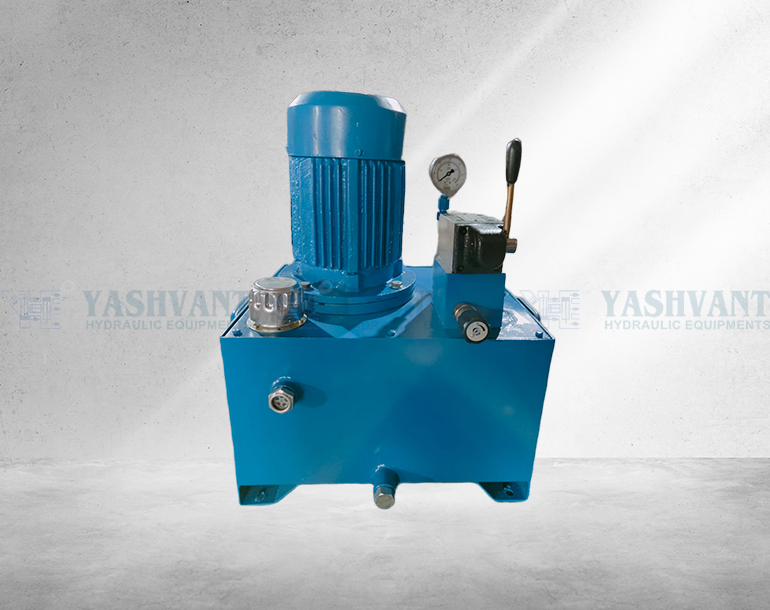

A hydraulic power pack is a stand-alone assembly consisting of a drive motor, hydraulic pump and hydraulic fluid tank. The drive motor is connected to the hydraulic pump via a shaft and drives this. The motor and pump can be installed on the tank, as well as inside the tank in oil. The tank size, withdrawal, feed and critical flow speeds depend on the task and application, and must be configured accordingly.
Key Features :
- Electric motor: - 0.5 hp to 30 hp
- Reservoir tank: - 15 liter to 2000 liter
- Flow Capacity: - 1.2 LPM to 200 LPM
- Working Pressure: - up to 700 bar
- Hand Lever Operated valve (Make: - Rexroth, Polyhydron etc.)
- Pressure relief Valve (Make: - Rexroth, Yuken, Polyhydron etc.)
- All Other Standard Accessories
An industrial hydraulic power pack works with both hand Lever operated valves and solenoid valves and consists of a reservoir, motor, hydraulic pump and Manifold Blocks. It is an all-in-all machine effective for industrial use in heavy-duty lifting applications.
Product Details :
| HP | : | Up To 50 HP |
| Oil Tank | : | Up To 1500 Liter |
| Working Pressure | : | Up To 550 Kg/Cm^ |
Note: As Per Customer Requirement
