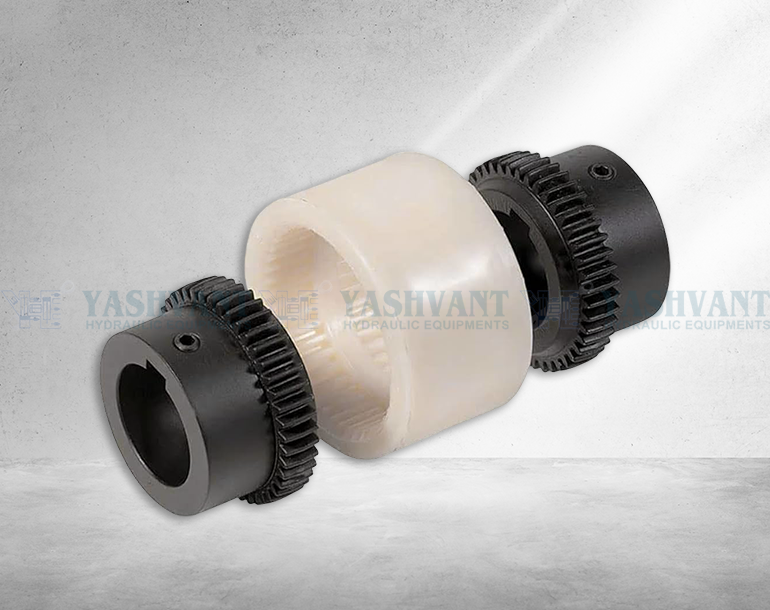

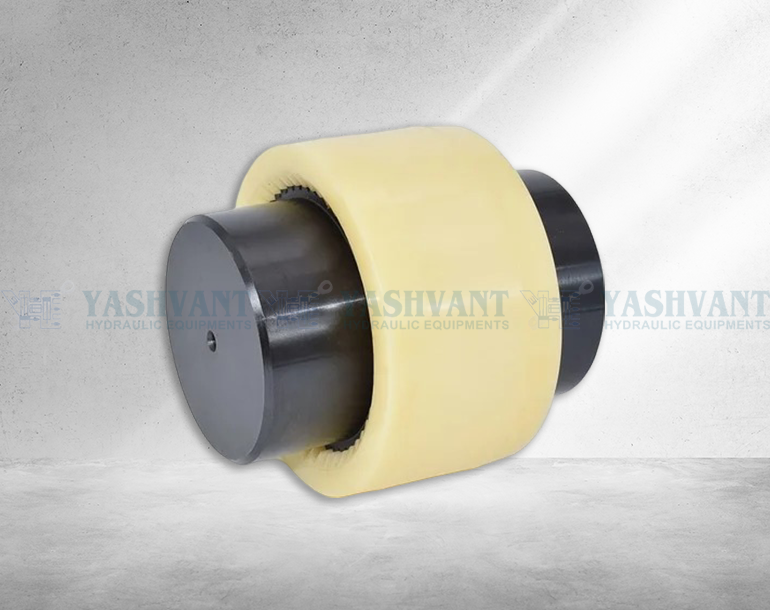

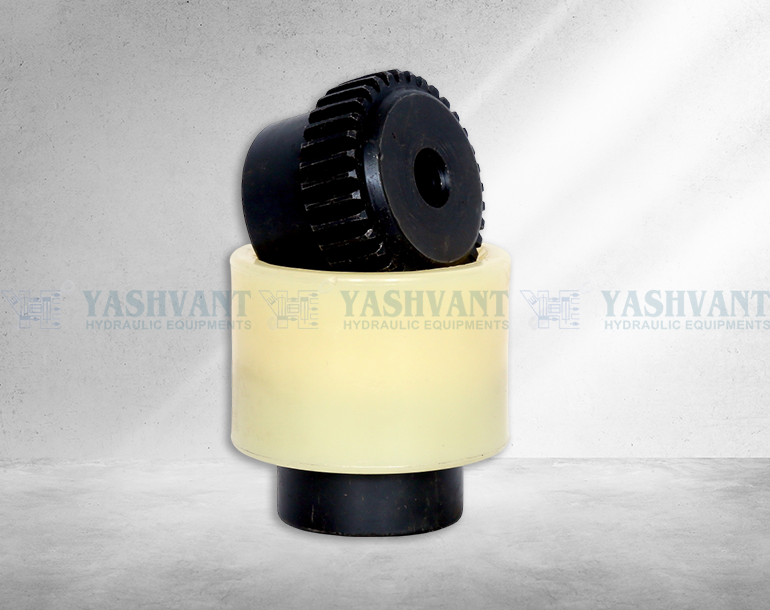

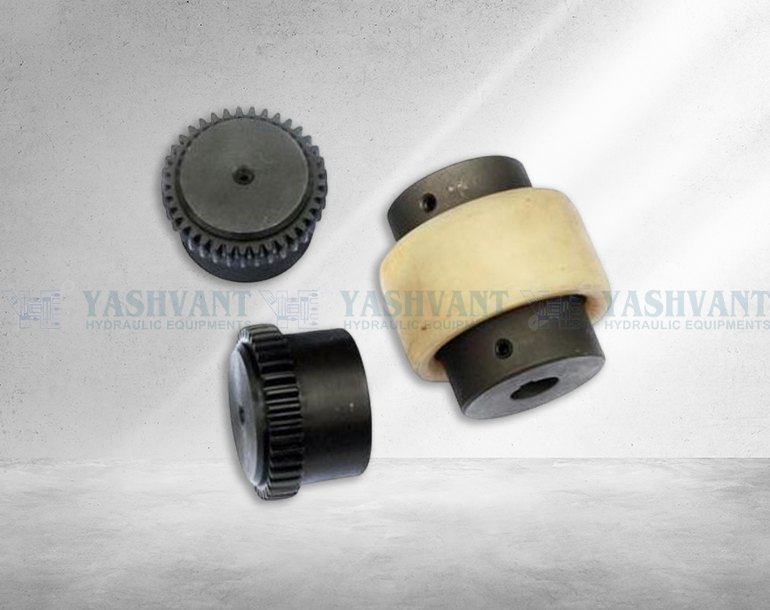

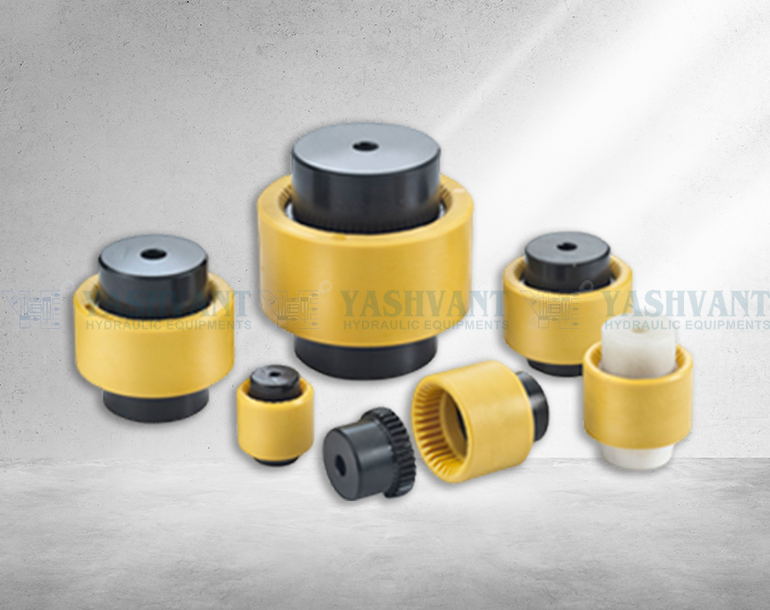

Curved Tooth Gear Coupling which is easy to assemble. It is widely used in hydraulic equipments and in the transmission market. It requires low maintenance and is compact in size. It is made available in various sizes and the tooth gears provide angular and axial alignments. It also provides perfect fitting and is light in weight.
Application to all range of hydraulic equipment and in the transmission market. • Maintenance free no lubrication Crowned – tooth • form gears permitting axial and angular misalignment • Cost effective, Easy to assemble • 2 drive hubs engaging in a sleeve • Compact and streamlined available in five sizes to suit 1 to 75 HP maximum • Maximum permissible angular misalignment 1.5 degrees. Ensure that the coupling hubs easily fit on shaft. • Do not use undue force. • Maintain gap between hubs as shown in sketch. • Use grub screws to locate gear hubs on their respective shaft • For shock load application use the following formula
Maximum permissible angular misalignment 1.5 degrees, Ensure coupling hubs easily fit on shaft. Do not use undue force. Maintain gap between hubs as shown in sketch. Use grub screws to locate gear hubs on their respective shafts. For shock load acplication use the foliowing formula
Raing / IDO RPM of coupling = Hp of application X 100 X F / RPM of application
|
|
|
|
|
|
|
| A | 54 | 84 | 84 | 110 | 144 |
| B | 48 | 66 | 83 | 100 | 140 |
| C | 37 | 46 | 48 | 53 | 72 |
| D | 32 | 44 | 58 | 65 | 96 |
| E | 8.5 | 19 | 18 | 29 | 36 |
| F | 25 | 40 | 40 | 54 | 70 |
| G Pilot bore dia | 10 | 15 | 15 | 15 | 15 |
| KW | HP | KW | HP | KW | HP | KW | HP | Kg.M | Ft.Lbs | |||
| 19 | 80 90S 90L | 2.2 | 2 | 1.5 | 1 | 1.1 | 1 | .75 | 1 | .5 | 3.6 | 3000 |
| 28 | 100L 112M | 7.5 | 10 | 5.5 | 5 | 4.25 | 5 | 2.2 | 3 | 2.3 | 16.6 | 3000 |
| 38 | 132S 132M | 10 | 13 | 7.5 | 10 | 5.5 | 7.5 | 3 | 4.5 | 7 | 4.9 | 3000 |
| 48 | 160ML 180ML | 22 | 30 | 18.5 | 25 | 15 | 20 | 11 | 15 | 14.4 | 104 | 3000 |
| 65 | 200L 250M | 55 | 75 | 55 | 75 | 37 | 50 | 30 | 40 | 35.5 | 256 | 3000 |
